How to Build an AR-15 Lower Receiver: Trigger Guard

Build an AR-15 Lower Receiver - thearmsguide.com

August 27, 2016 by Nate Schultz (nsz85) 5 Comments

For those of you following the How to Build an AR-15 series (thus far, we’ve just finished installing the magazine catch), this article will cover installing the trigger guard. For visual reference for this part of the AR build, check out this video. I’ve included the time stamp for the segment of the video associated with this article.

I will be explaining how to complete this step with a block of wood, roll pin punchesamazon, and a hammer. But recently, I discovered the Roll Pin Pusher (R.P.P.) tool, which I’ll cover in more detail a later post.

(04:20) Step 2 – Trigger guard

Build an AR-15 Lower Receiver - thearmsguide.com

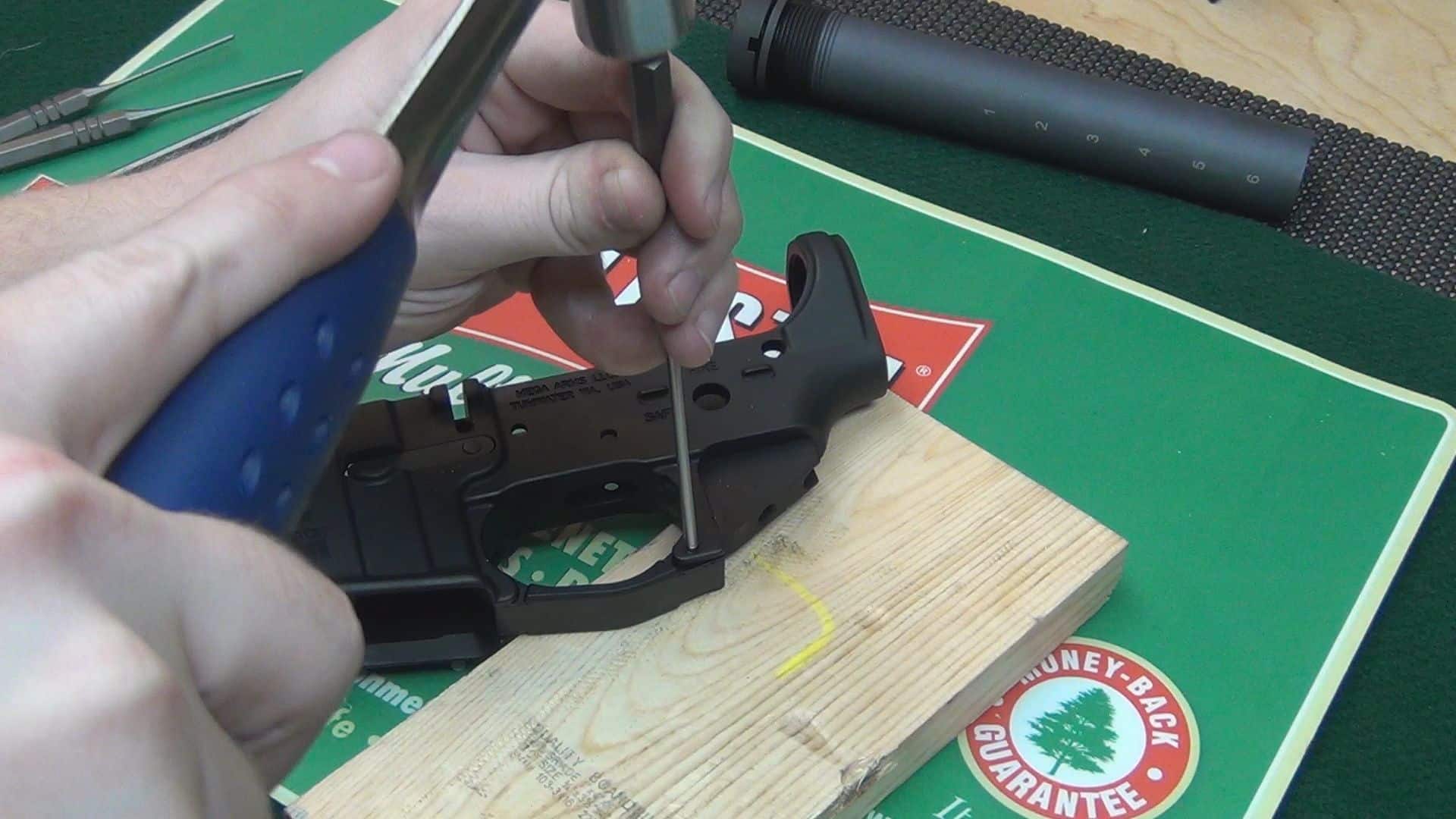

Use the piece of wood to support the lower receiver trigger guard ears or you will risk breaking one off.

PLEASE NOTE: It is extremely important that you maintain proper support to the “dog ear” tabs during this step. If you do not, you will risk breaking one of these tabs on your lower receiver. Yeah, not fun.

Remove your lower receiver from the vise block and place it on a hard, flat surface. Take your piece of wood and place it under the bottom “dog ear” trigger guard tab. Now place your trigger guard in between the tabs where it would be once it is installed. Using a small hammer and the properly sized roll pin starter, tap the trigger guard roll pin into the first tab and partially into the trigger guard, hence holding it in place.

Using a 1/8″ roll pin punch, while supporting the bottom tab with the piece of wood, continue to drive the trigger guard roll pin into the trigger guard until it is flush on both sides of your AR-15 lower receiver.

I know you were careful, but did you break a tab off? Don’t panic too much. Just pick up one of these pistol grips and you will be back in action.

Our build is starting to shape up, isn’t it? Keep your eye out for the article on our next step: installing the bolt catch.

Filed Under: AR-15, How To, Rifles Tagged With: an, AR-15, AR-15 build, AR-15 lower receiver, assemble, assembly, broken ears, build, Colt, fix, grip of shame, guide, how to, install, installation, instruction, le6920, make, mega, mil-spec, noveske, rifle, roll pin pusher, rpp, stag, stark pistol grip, step by step guide, stripped, trigger guard, video

Related Posts

  • Windham Weaponry New Release: Carbon Fiber AR-15
    Windham Weaponry New Release: Carbon Fiber AR-15
  • Barrett MRAD
    Barrett MRAD: Long Range Beauty
  • Eye Candy: SIG MPX - TheArmsGuide.com
    Eye Candy: SIG MPX

About the Author

Avatar for Nate Schultz (nsz85)

Nate Schultz (nsz85) Nate Schultz is employed within the field of Law Enforcement, is an avid shooter, firearms enthusiast and hobbiest gunsmith. When he is not writing for The Arms Guide, he is producing content for his YouTube channel: www.youtube.com/nsz85

See All Nate Schultz (nsz85) Articles

Comments

  1. Avatar for Nate Schultz (nsz85)JunkfoodZombie says

    July 20, 2013 at 8:24 pm

    Cool. I recently did a video on my YouTube channel installing a Magpul triggerguard. It has the screw in front instead of the spring loaded pin like the stock trigger guard. If anyone is interested, my channel is JunkfoodZombie. I hope it will help you guys as well. Good luck with your builds!

    Reply
    • Avatar for Nate Schultz (nsz85)Nate Schultz says

      July 21, 2013 at 7:32 pm

      That’s the trigger guard that I used too. I much prefer the way it looks.

      Reply
  2. Avatar for Nate Schultz (nsz85)JunkfoodZombie says

    July 20, 2013 at 8:24 pm

    Cool. I recently did a video on my YouTube channel installing a Magpul triggerguard. It has the screw in front instead of the spring loaded pin like the stock trigger guard. If anyone is interested, my channel is JunkfoodZombie. I hope it will help you guys as well. Good luck with your builds!

    Reply
  3. Avatar for Nate Schultz (nsz85)ecs5298 says

    July 21, 2013 at 1:14 am

    Ok….I cheated….I went to your Youtube and watched all the video.  Putting together a parts list to order as we speak!  Thanks Nate.  This got me headed in the right direction.  It was all mystifying until I read your articles and watched your videos.  Now I feel I can build my own.  Just making all the decisions as to what to order is a job in itself!

    Reply
    • Avatar for Nate Schultz (nsz85)Nate Schultz says

      July 21, 2013 at 7:33 pm

      Awesome! I am glad that I could help. If you have any questions, just ask. Cheers 🙂

      Reply
